Piusi OCIO Tank Level Indicator

thumbnail of OCIO instructions

Instructions

thumbnail of OCIO Tank Level Indicator 2009A

Features

thumbnail of OCIO Tank Level Indicator

Data Sheet













Category:

Description

Piusi OCIO Hydrostatic Gauge

Continuous fluid monitoring system for the ‘serious commercial application’.



An ‘always on’ system for monitoring the fluid level inside atmospheric tanks, which detects the static pressure of the fluid height by means of a tube inserted in the tank and displays the fluid level or volume. This gives a reliable and repeated level indication.

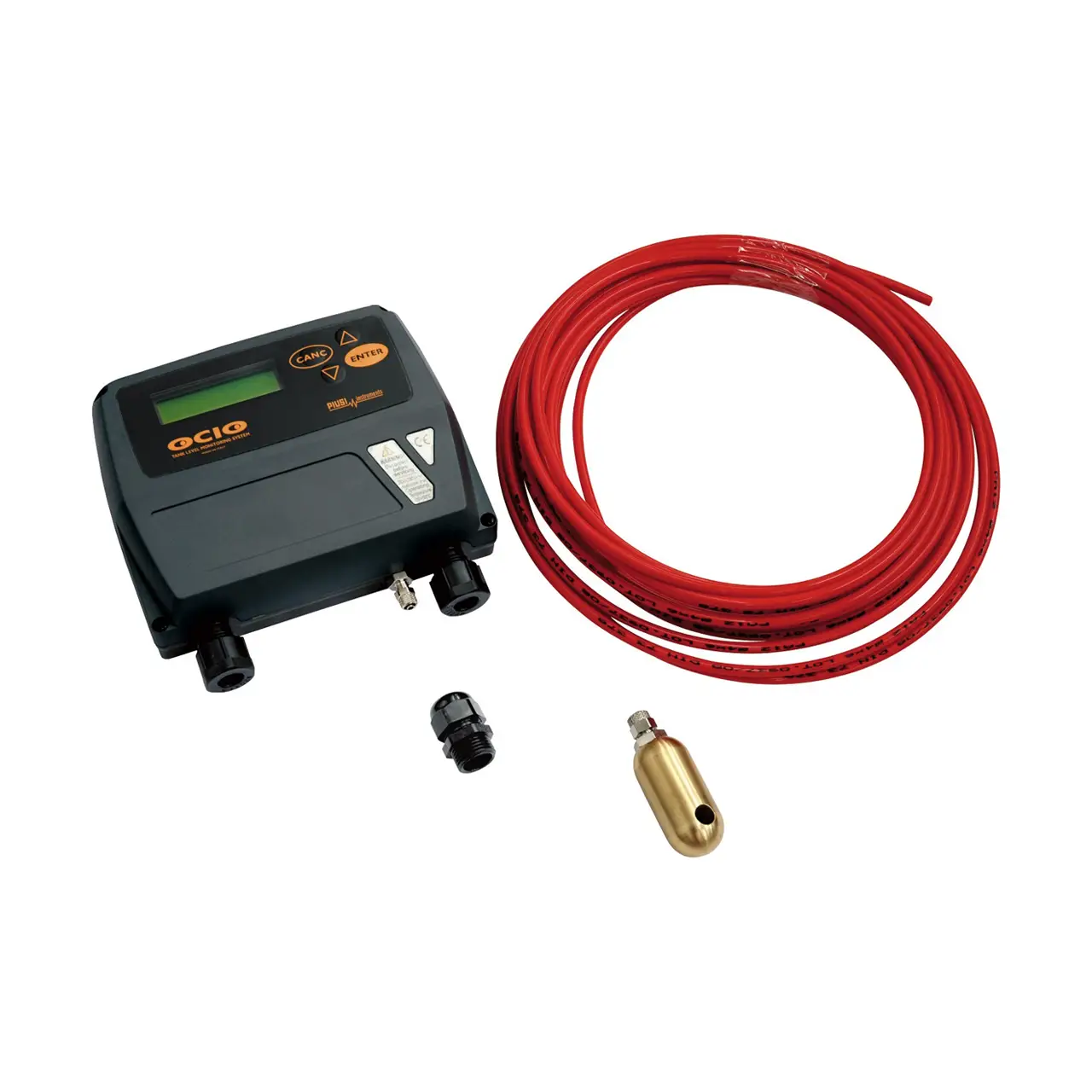

The system is composed: of a pipe for detecting the static pressure, with its end inserted through the top of the tank and inserted in the fluid to the bottom; and a control unit for level display and system management. The unit is provided with intuitive software that allows the connection of two alarm or lock devices.

By means of the integral software it is possible to: set the type and the dimensions of the tank; define the level alarms; define the level indication; define the unit of measurement; and calibrate the instrument.

Depending on the set alarm levels, the control unit activates or deactivates the contact working as a remote switch starting the alarm devices or cutting the power supply off the connected equipment.



Technical Information

Level indication options selectable

  • Height (mm, inch)
  • Volume (litres, gallons)
  • Filling Percentage(%)
  • RS Output for PC connection available



Main Advantages

  • Continuous Metering
  • Indication option of height, volume and filling percentage
  • Maximum and minimum level alarms
  • High accuracy
  • Intuitive software managing procedure
  • Easy Installation
  • PC link up option

Additional information

Brand

Piusi

Brand

Piusi
